Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F1546 |

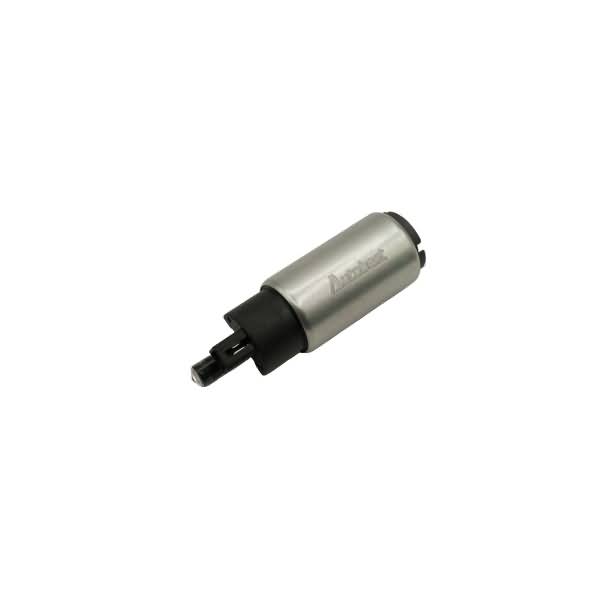

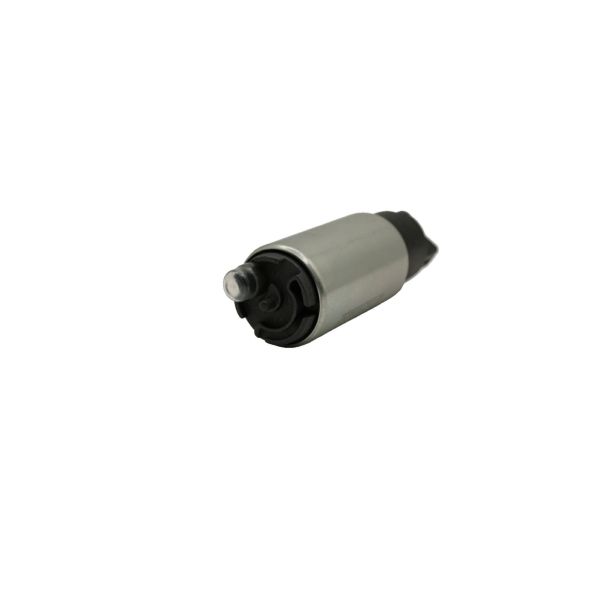

Part Description | Electric Fuel Pump |
Average Current Draw(A) | 7 |
Average Flow Rating(GPH) | 120 |
Country of Orign | China |
Fuel Type | Turbine |
Gasket or Seal Included | No |
Height (in.) | 3 |
In Tank or External | In Tank |
Inlet Size | 0.433 |
Inlet Type | Strainer |
Installation Warnings | No |
Length (in.) | 7.5 |
Life Cycle Status Code | Available to Order |
Lock Ring Included | No |
Maximum Free Flow (GPH) | 55 |
Maximum Pump Pressure (PSI) | 135 |
Minimum Free Flow (GPH) | 45 |
Minimum Pump Pressure (PSI) | 125 |
Negative Ground | No |
Outlet Quantity | 1 |
Outlet Size | 0.346 |
Outlet Type | Hose |

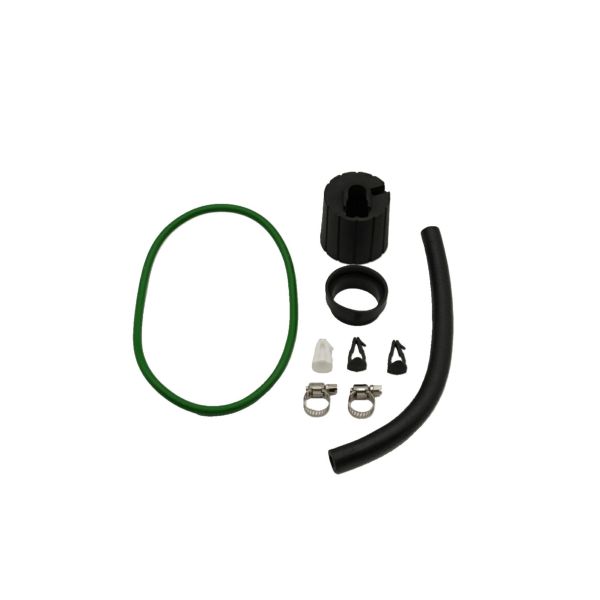

Package Contents | Pump & Kit |
Product Height (in) | 1.5 |
Product Length (in) | 4.76 |
Product Width (in) | 1.5 |
Regulator Included | No |
Strainer Included | No |
Terminal Gender | Male |
Terminal Quantity | 2 |
Terminal Type | Chip |
UPC | 00072845115461 |
Voltage | 12V |
Weight (lbs) | 0.72 |
Weight (lbs.) | 1.04 |
Width (in.) | 2.75 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2004-2006 Ford Ranger | All Trims | 4 Cyl 2.3L |
2004-2006 Ford Ranger | All Trims | 6 Cyl 3.0L |
2004-2006 Ford Ranger | All Trims | 6 Cyl 4.0L |
2004 Mazda B2300 | All Trims | 4 Cyl 2.3L |
2004-2006 Mazda B3000 | All Trims | 6 Cyl 3.0L |
2004-2006 Mazda B4000 | All Trims | 6 Cyl 4.0L |
