Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F1533 |
Part Description | Electric Fuel Pump |
Average Current Draw(A) | 8 |
Average Flow Rating(GPH) | 155 |
Connector Gender | Male |
Connector Quantity | 2 |
Connector Shape | PIN |
Country of Orign | China |
Fuel Type | Turbine |
Gasket or Seal Included | No |
Grade Type | Performance |
Height (in.) | 3 |
In Tank or External | In Tank |
Inlet Size | 0.43 |
Inlet Type | filter |
Installation Warnings | No |
Internal Or External Strainer | External |
Length (in.) | 9.5 |
Life Cycle Status Code | Available to Order |
Maximum Pump Pressure (PSI) | 110 |
Minimum Pump Pressure (PSI) | 100 |
Outlet Quantity | 1 |
Outlet Size | 0.35 |
Outlet Type | Male Quick Connect |

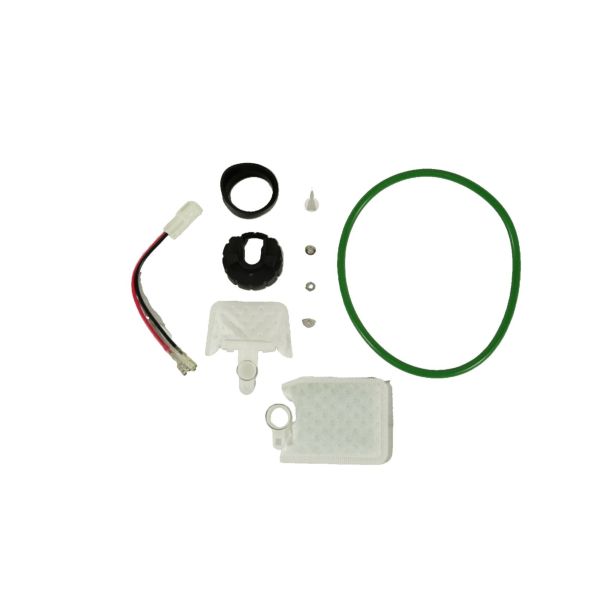

Package Contents | Fuel Pump & Kit |
Product Height (in) | 1.46 |
Product Length (in) | 4.88 |
Product Width (in) | 1.46 |
Regulator Included | No |
Short Description | Fuel Pump |
Terminal Gender | Male |
Terminal Quantity | 2 |
Terminal Type | Inserts |
UPC | 00072845115331 |
Voltage | 12V |
Weight (lbs) | 0.72 |
Weight (lbs.) | 2 |
Width (in.) | 3 |
Year Make Model | Trim | Engine |
---|---|---|
2005-2007 Ford Five Hundred | All Trims | 6 Cyl 3.0L |
2005-2007 Mercury Montego | All Trims | 6 Cyl 3.0L |
