Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F1520 |

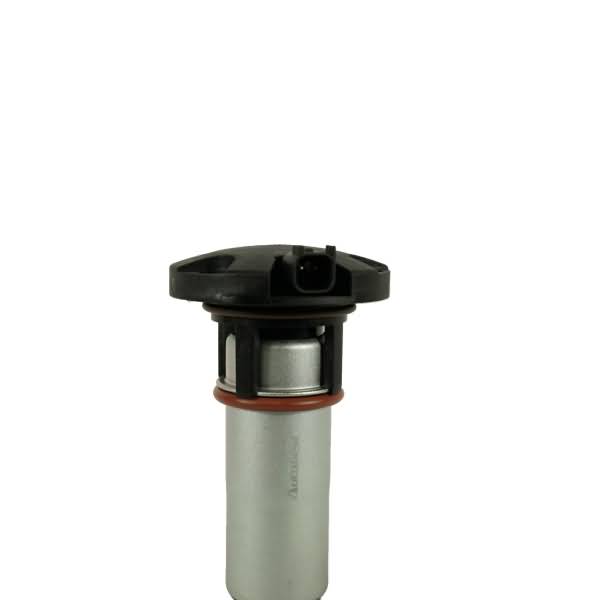

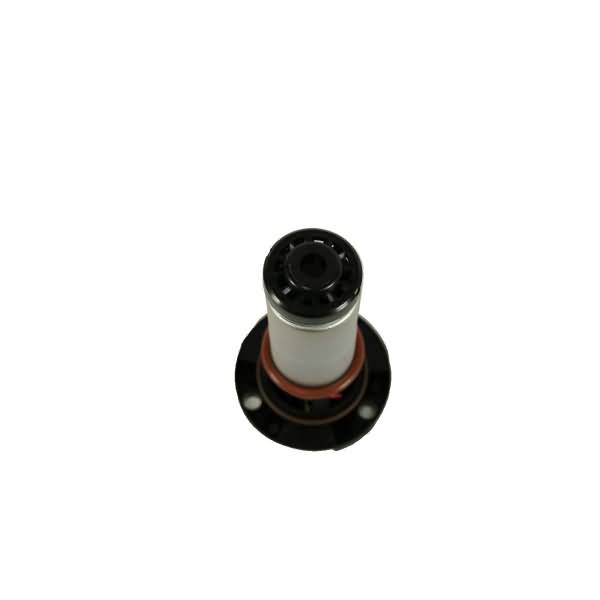

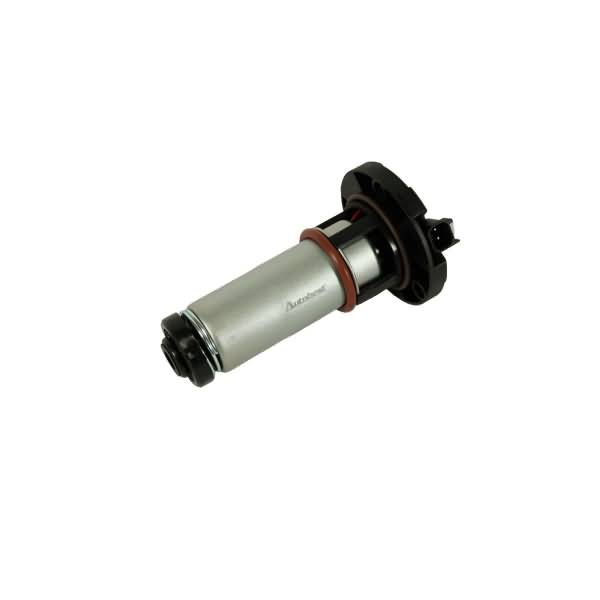

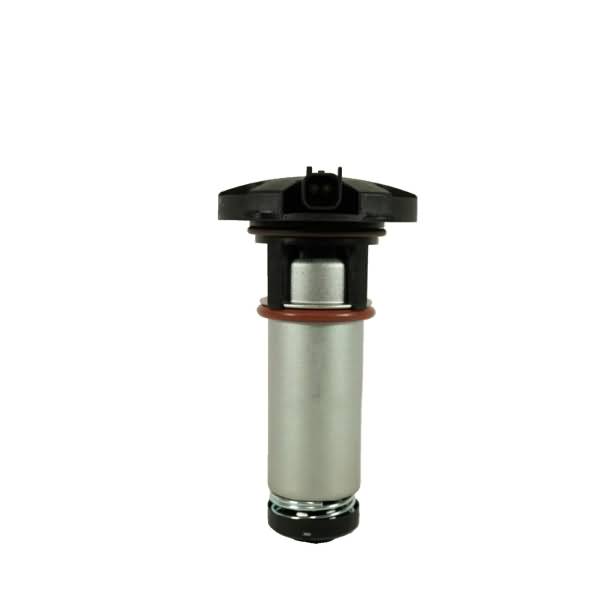

Part Description | Electric Fuel Pump |
Average Current Draw(A) | 3 |
Average Flow Rating(GPH) | 160 |
Country of Orign | China |
Fuel Type | Rollervane |
Gasket or Seal Included | No |
Gasket Or Seal Material | FKM |
Height (in.) | 7 |
In Tank or External | In Tank |
Inlet Type | Strainer |
Installation Warnings | No |
Length (in.) | 9 |
Life Cycle Status Code | Available to Order |
Lock Ring Included | No |
Maximum Free Flow (GPH) | 45 |
Maximum Pump Pressure (PSI) | 24 |
Minimum Free Flow (GPH) | 40 |
Minimum Pump Pressure (PSI) | 17 |
Negative Ground | No |
Outlet Quantity | 1 |
Outlet Size | / |
Outlet Type | No External Fittings |
Package Contents | Pump & Kit |
Product Height (in) | 3.29 |
Product Length (in) | 6.14 |
Product Width (in) | 3.29 |
Regulator Included | No |
Strainer Included | No |
Terminal Gender | Male |
Terminal Quantity | 2 |
Terminal Type | PIN |
UPC | 00072845115201 |
Voltage | 13.2V |
Weight (lbs) | 1.38 |
Weight (lbs.) | 1.38 |
Width (in.) | 7 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2008-2010 Ford F-250 Super Duty | All Trims | 8 Cyl 6.4L |
2008-2010 Ford F-350 Super Duty | All Trims | 8 Cyl 6.4L |
