Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F1313A |

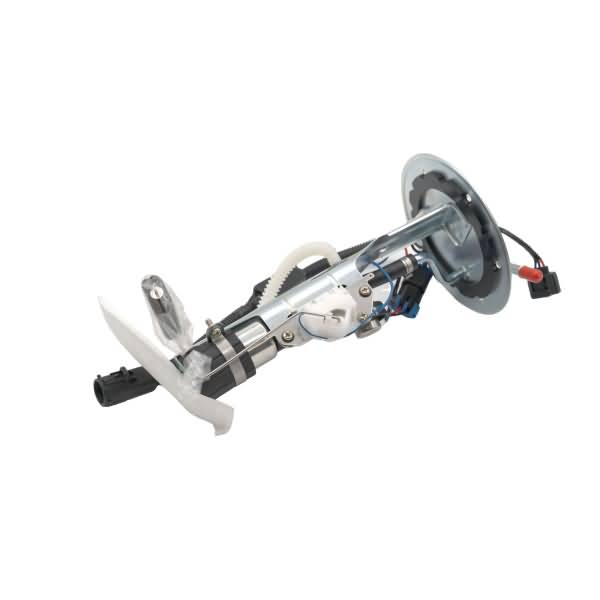

Part Description | Electric Fuel Pump |
Average Current Draw(A) | 8 |
Average Flow Rating(GPH) | 24 |
Connector Gender | Female |
Connector Shape | Round |
Country of Orign | China |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | No |
Gasket or Seal Included | No |
Gasket Or Seal Material | Nitrile Rubber |
Grade Type | Premium |
Height (in.) | 6.75 |
In Tank or External | In Tank |

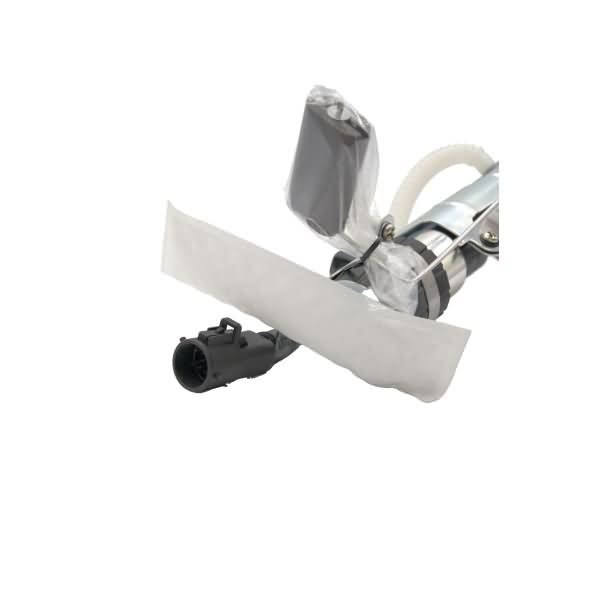

Inlet Type | Strainer |
Internal Or External Strainer | External |
Length (in.) | 16 |
Life Cycle Status Code | Available to Order |
Lock Ring Included | No |
Maximum Pump Pressure (PSI) | 85 |
Minimum Pump Pressure (PSI) | 75 |

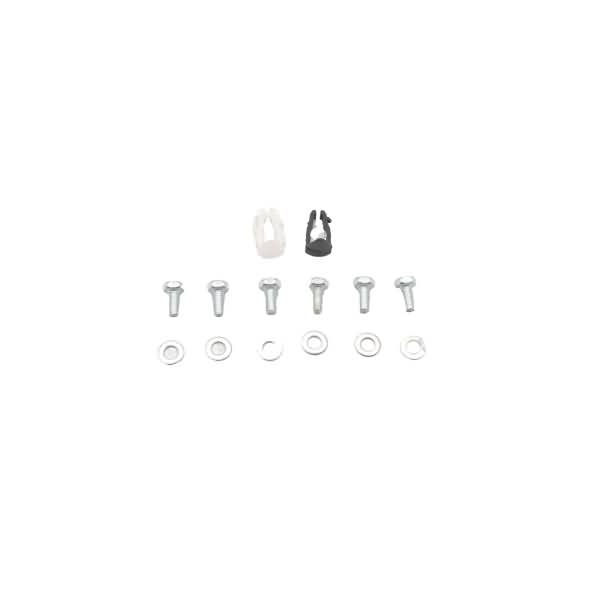

Mounting Hardware Included | Yes |
Negative Ground | No |
Outlet Quantity | 1 |
Outlet Size | 3/8 |
Outlet Type | Quick Connect |
Package Contents | Fuel Pump Assembly |
Product Height (in) | 6.75 |
Product Length (in) | 16 |
Product Width (in) | 10 |
Resistance Ohms Empty | 16 |
Resistance Ohms Full | 160 |
Short Description | Electric Fuel Pump |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 8 |
Terminal Type | Pin |
UPC | 00072845113139 |
Voltage | 12 |
Weight (lbs) | 2.96 |
Weight (lbs.) | 2.96 |
Width (in.) | 10 |
Year Make Model | Trim | Engine |
---|---|---|
2000-2001 Ford Explorer | All Trims | 6 Cyl 4.0L |
