Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F1213A |

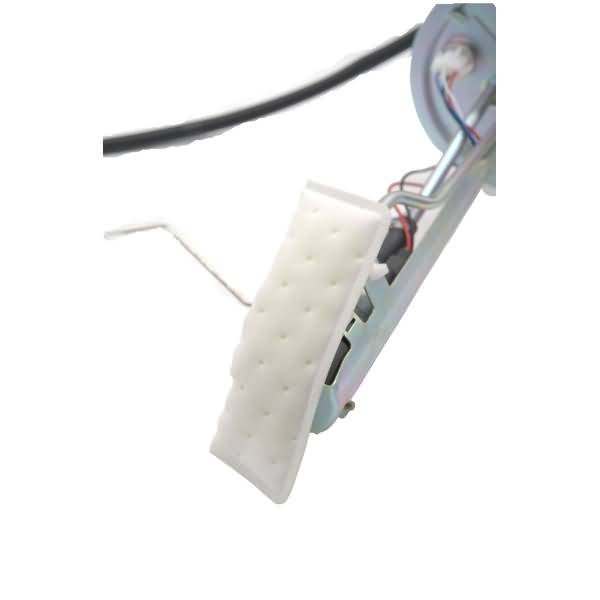

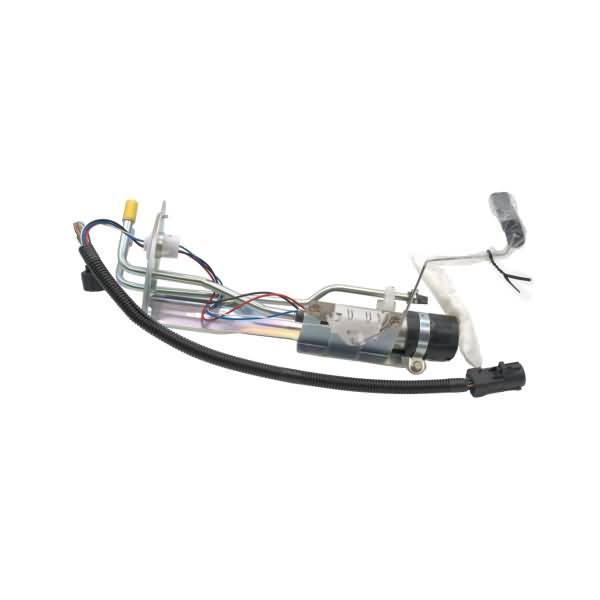

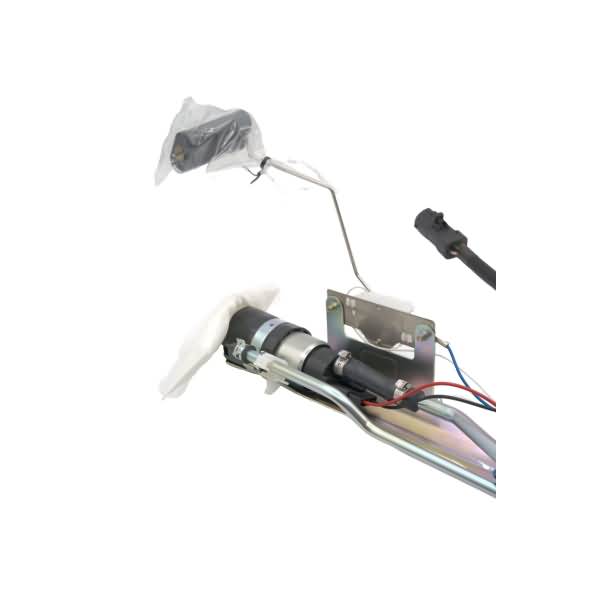

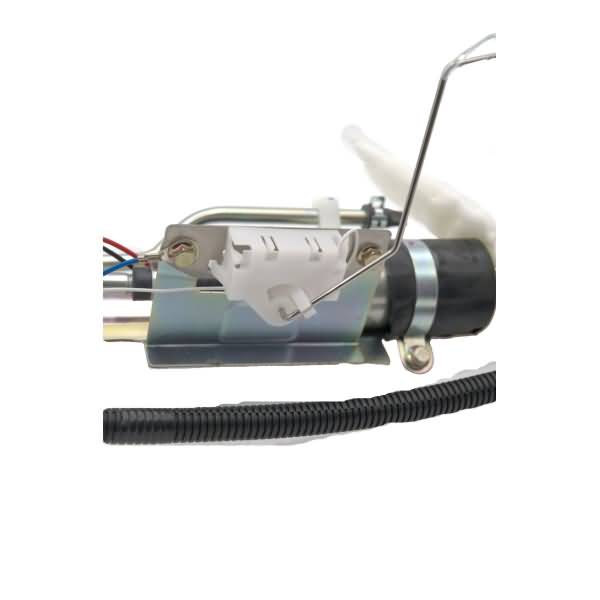

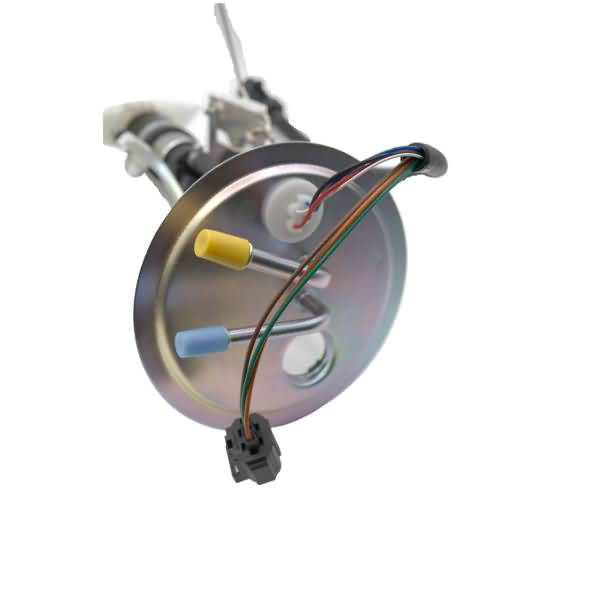

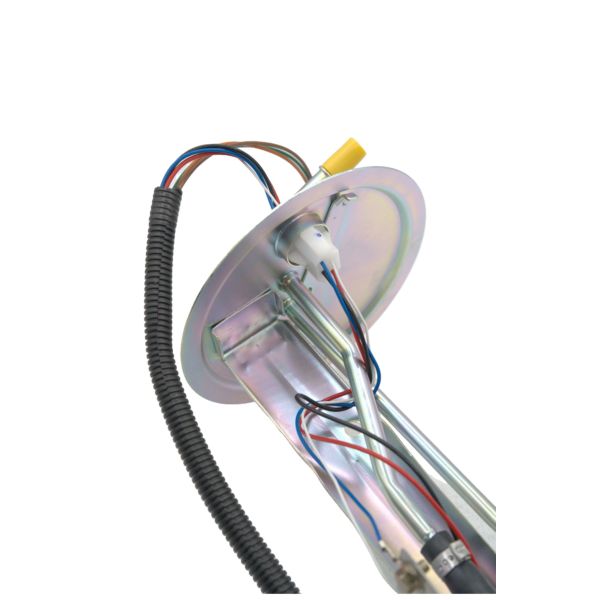

Part Description | Electric Fuel Pump |
Average Current Draw(A) | 6.5 |
Average Flow Rating(GPH) | 34 |
Connector Gender | MaleFemale |
Connector Quantity | 2 |
Connector Shape | Rectangle+Round |
Country of Orign | China |
Fuel Filter Included | No |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | No |

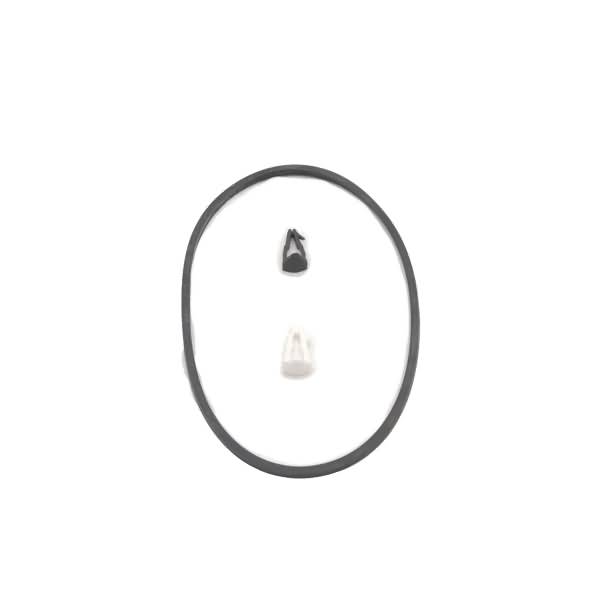

Gasket or Seal Included | Yes |
Gasket Or Seal Material | NBR |
Grade Type | Performance |
In Tank or External | In Tank |
Inlet Size | 0.433 |
Inlet Type | Strainer |
Installation Warnings | No |
Internal Or External Strainer | External |
Lock Ring Included | No |
Maximum Pump Pressure (PSI) | 100 |
Minimum Pump Pressure (PSI) | 80 |
Mounting Hardware Included | No |
Negative Ground | No |
Outlet Quantity | 1 |
Outlet Size | 3/8 |
Outlet Type | Quick Connect, Return Line |
Product Height (in) | 6.3 |
Product Length (in) | 13.39 |
Product Width (in) | 11.81 |
Pump Type | Turbine |
Regulator Included | No |
Resistance Ohms Empty | 15 |
Resistance Ohms Full | 160 |
Strainer Included | Yes |
Terminal Gender | MaleFemale |
Terminal Quantity | 10 |
Terminal Type | PIN |
UPC | 00072845112132 |
Voltage | 12V |
Weight (lbs) | 2.98 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
1997-1998 Ford Expedition | All Trims | 8 Cyl 4.6L |
1997-1998 Ford Expedition | All Trims | 8 Cyl 5.4L |
1998 Lincoln Navigator | All Trims | 8 Cyl 5.4L |
