Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F1127A |

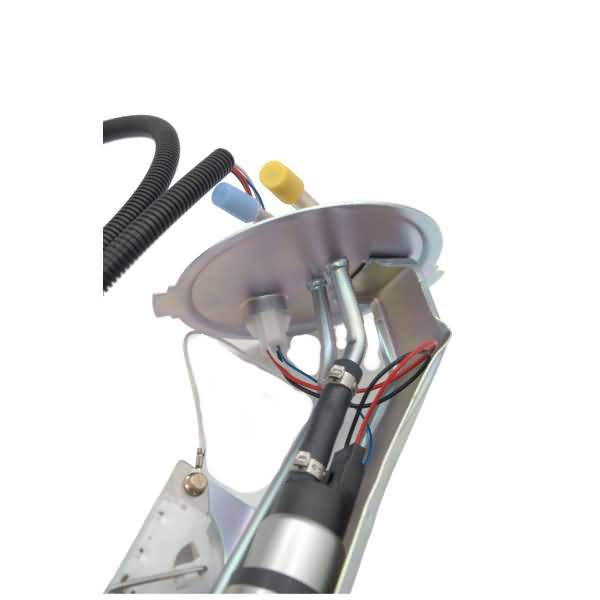

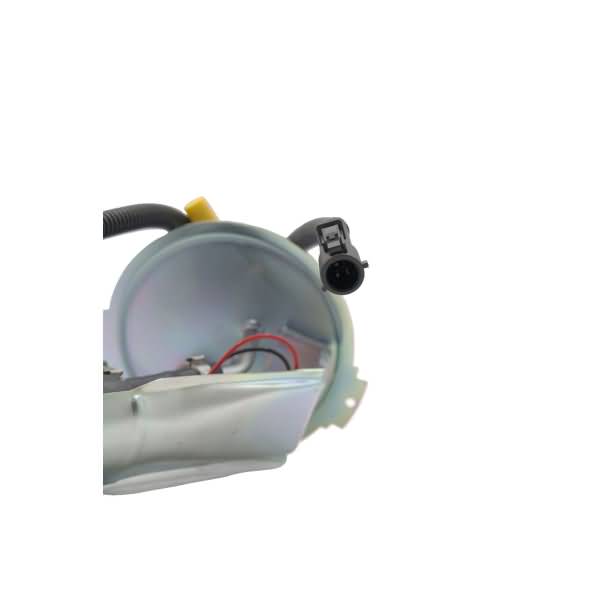

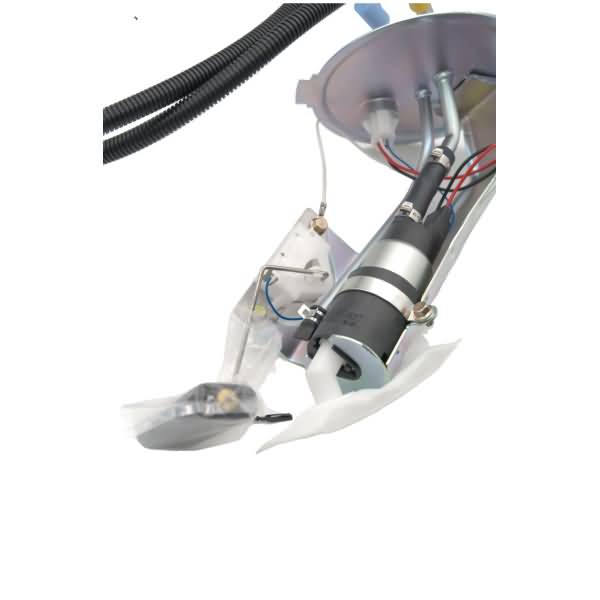

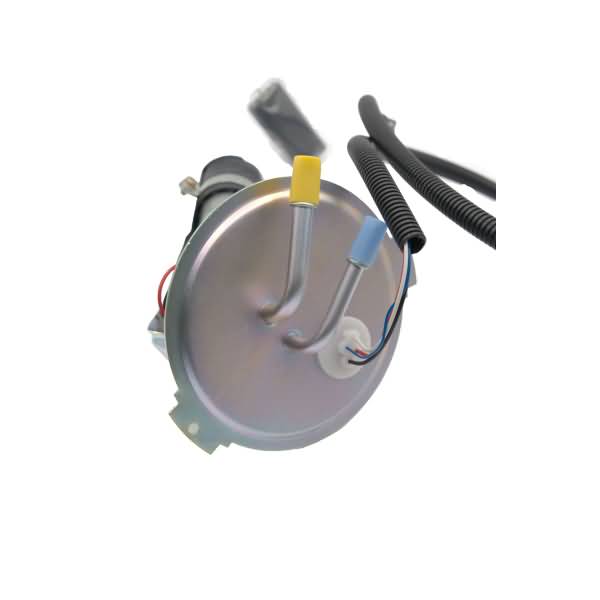

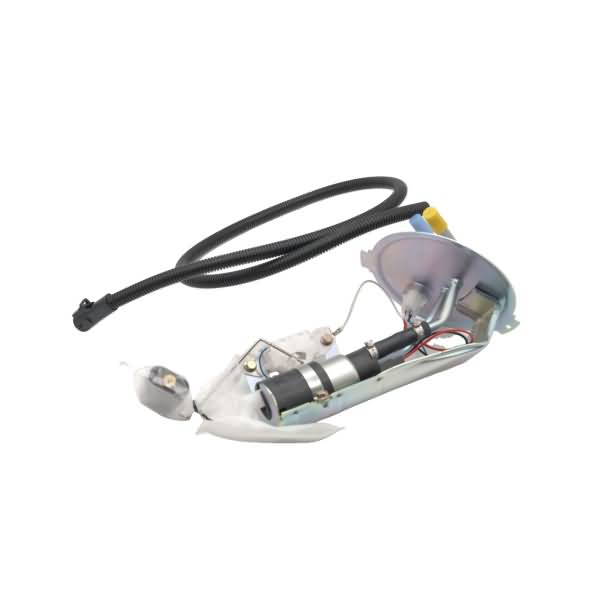

Part Description | Electric Fuel Pump |
Average Current Draw(A) | 8 |
Average Flow Rating(GPH) | 45 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Round |
Country of Orign | China |
Fuel Filter Included | No |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | No |
Fuel Type | Turbine |
Gasket or Seal Included | Yes |
Gasket Or Seal Material | NBR |
Grade Type | Performance |
Height (in.) | 7 |
In Tank or External | In Tank |
Inlet Size | 0.433 |
Inlet Type | Strainer |
Installation Warnings | No |
Internal Or External Strainer | External |
Length (in.) | 14 |
Life Cycle Status Code | Available to Order |

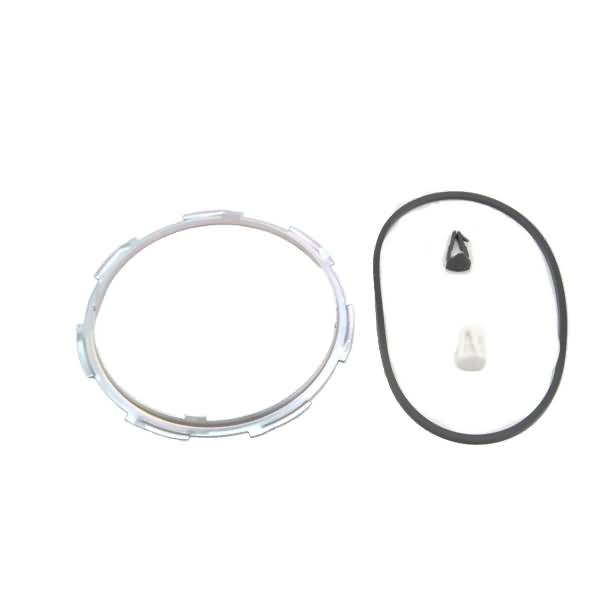

Lock Ring Included | Yes |
Maximum Pump Pressure (PSI) | 90 |
Minimum Pump Pressure (PSI) | 80 |
Mounting Hardware Included | No |
Negative Ground | No |
Outlet Quantity | 1 |
Outlet Size | 3/8 |
Outlet Type | Quick Connect, Return Line |
Package Contents | Fuel Pump Assembly |
Product Height (in) | 5.71 |
Product Length (in) | 8.66 |
Product Width (in) | 8.66 |
Regulator Included | No |
Resistance Ohms Empty | 16 |
Resistance Ohms Full | 160 |
Short Description | Electric Fuel Pump |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | PIN |
UPC | 00072845111272 |
Voltage | 12V |
Weight (lbs) | 2.55 |
Weight (lbs.) | 2.7 |
Width (in.) | 7.25 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
1995-1997 Ford Windstar | All Trims | 6 Cyl 3.0L |
1995-1997 Ford Windstar | All Trims | 6 Cyl 3.8L |
