Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Airtex |
Part Number | AW1109 |

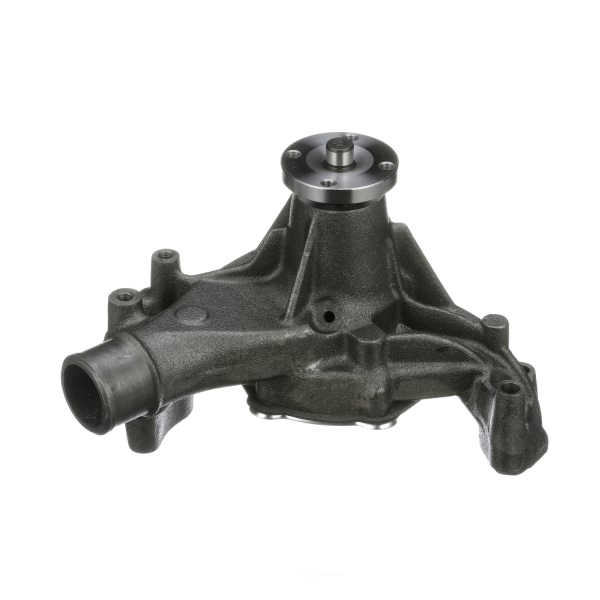

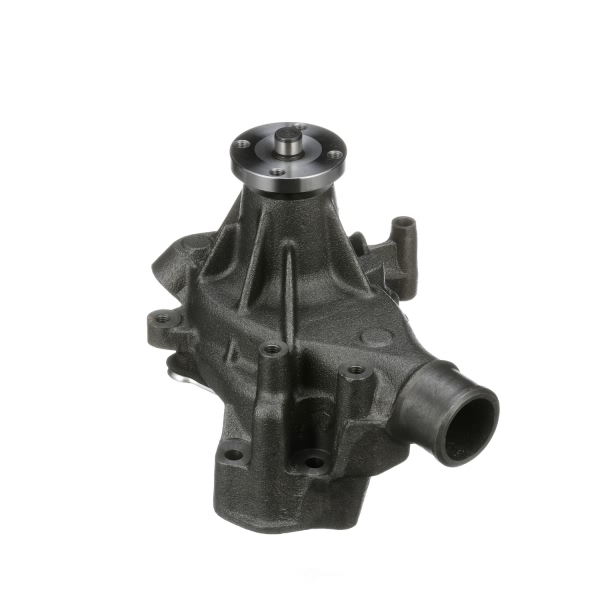

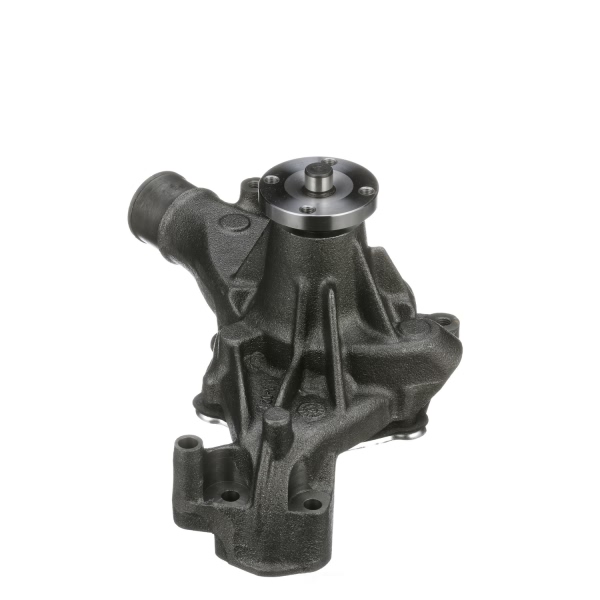

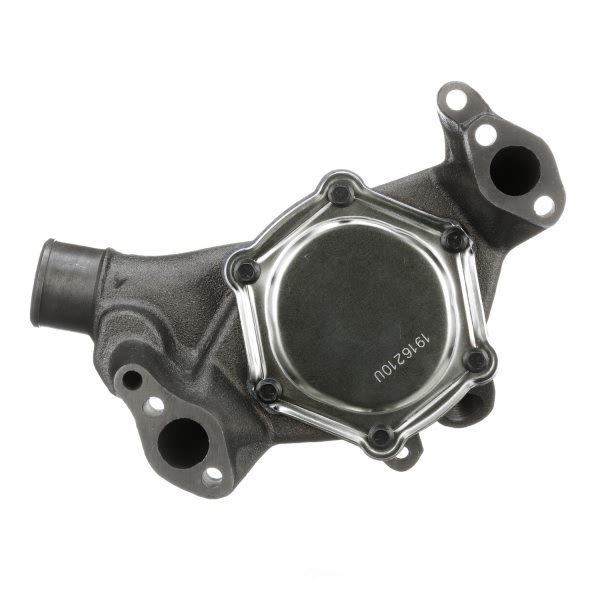

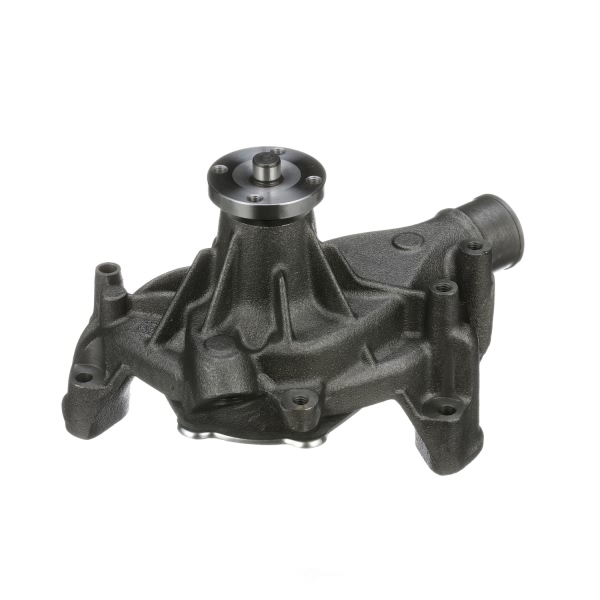

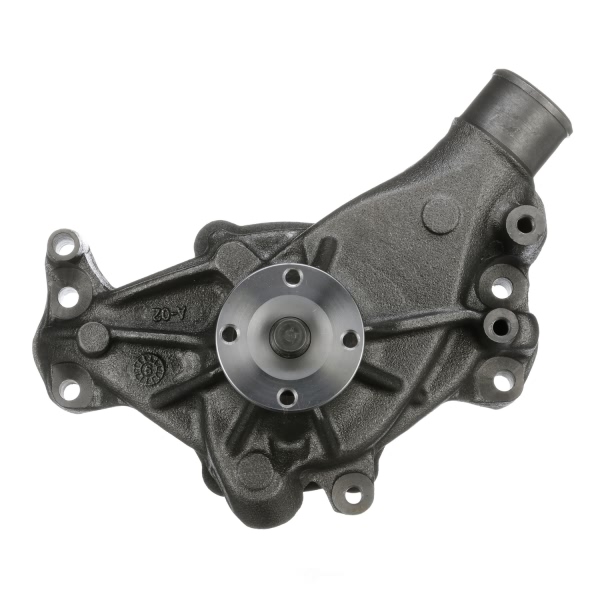

Part Description | Standard Engine Coolant Water Pump |
Fan Clutch Included | No |
Housing Material | Cast Iron |
Hub Height | 176.15 mm |
Hub Hole Quantity | 4 |
Impeller Material | Steel |
Impeller Rotation | Standard |
Impeller Vane Quantity | 6 |
Includes Back Housing | No |
Mounting Hole Quantity | 4 |
Pulley Included | No |
Water Pump Drive Type | Serpentine Belt |
Year Make Model | Trim | Engine |
---|---|---|
1973-1976 Avanti II | All Trims | 8 Cyl 6.6L |
1969-1970 Checker Deluxe | All Trims | 8 Cyl 5.7L |
1969-1976 Checker Marathon | All Trims | 8 Cyl 5.7L |
1969-1974 Checker Taxicab | All Trims | 8 Cyl 5.7L |
1969 Chevrolet Bel Air | All Trims | 8 Cyl 5.3L |
1969 Chevrolet Bel Air | All Trims | 8 Cyl 5.4L |
1969-1975 Chevrolet Bel Air | All Trims | 8 Cyl 5.7L |
1970-1975 Chevrolet Bel Air | All Trims | 8 Cyl 6.6L |
1969 Chevrolet Biscayne | All Trims | 8 Cyl 5.3L |
1969 Chevrolet Biscayne | All Trims | 8 Cyl 5.4L |
