Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Airtex |
Part Number | E3901 |
Part Description | In-Tank Electric Fuel Pump |
Connector Shape | Rectangle |
Fuel Pump Inlet Type | Strainer |
Fuel Sending Unit Included | No |
Gasket or Seal Included | Yes |
Inlet Attachment | Inlet-Strainer |
Inlet Count | 1 |
Inlet Outside Diameter | 19.0 |
Inlet Type | Strainer |
Internal or External | In Tank |
Internet Product Code (IPC) | A8ED0D48690 |
Item Grade | OEM Standard Part |
Item has MSDS (SDS) | No |
Length (Inch) | 133.0 |
Maximum Free Flow Rate (gph) | 35 |
Maximum Pressure (psi) | 17 |
MFG Brand Name | Airtex Products |
MFG Model # (Series) | E3901 |
Minimum Free Flow Rate | 21.0 |
Minimum Free Flow Rate (gph) | 35 |
Minimum Pressure (psi) | 12 |
Mounting Hardware Included | No |
Muffler Outlet Diameter (in) | 9.7 |
Negative Ground | Yes |
Outlet Attachment | Outlet-HoseConnection |
Outlet Count | 1 |
Outlet Quantity | 1 |
Outlet Size | Outlet - 3/8 |
Outlet Type | Hose Barb |

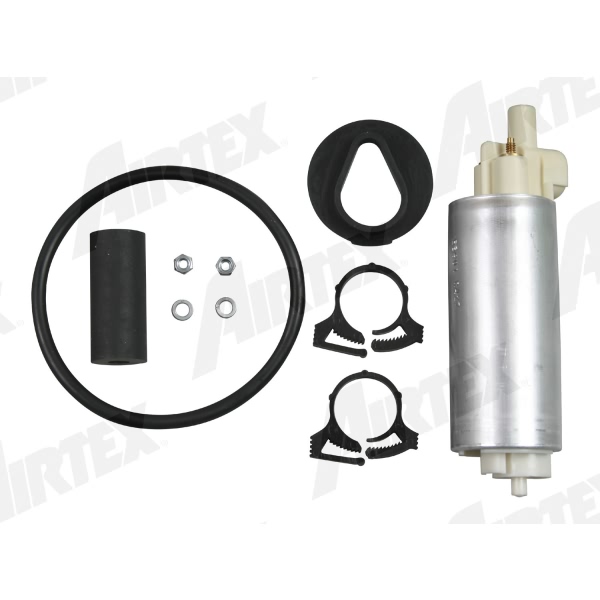

Package Contents | Pump and Kit |
Pump Type | Electric |
Regulator Included | No |
Seal And Lock Ring Included | No |
Strainer Included | No |
Supplier Company Name | Airtex Products |
Terminal Gender | Male |
Terminal Quantity | 2 |
Terminal Type | Threaded |
Universal Or Specific Fit | Specific |
UPC | 080044089704 |
Voltage [V] | 12V |
Wiring Harness Included | Yes |
Year Make Model | Trim | Engine |
---|---|---|
1982-1986 Buick Century | All Trims | 4 Cyl 2.5L |
1982-1986 Buick Skyhawk | All Trims | 4 Cyl 1.8L |
1983-1986 Buick Skyhawk | All Trims | 4 Cyl 2.0L |
1982-1986 Buick Skylark | All Trims | 4 Cyl 2.5L |
1986-1987 Buick Somerset | All Trims | 4 Cyl 2.5L |
1985 Buick Somerset Regal | All Trims | 4 Cyl 2.5L |
1983-1986 Cadillac Cimarron | All Trims | 4 Cyl 2.0L |
1985 Cadillac Commercial Chassis | All Trims | 8 Cyl 4.1L |
1980-1981 Cadillac DeVille | All Trims | 8 Cyl 6.0L |
1982-1986 Cadillac DeVille | All Trims | 8 Cyl 4.1L |
