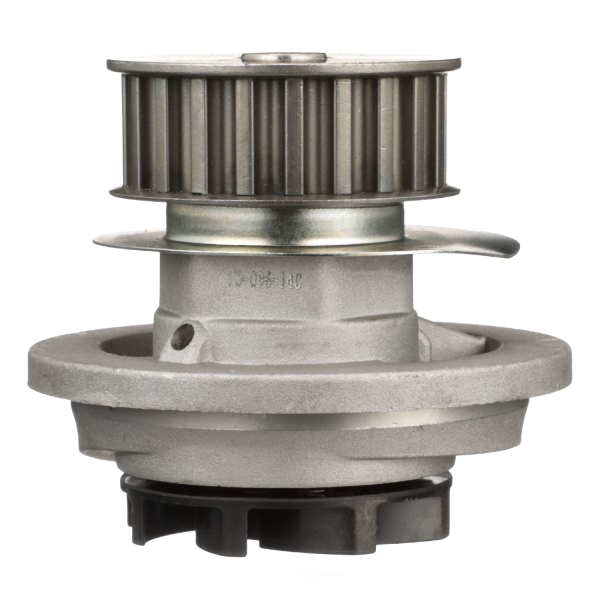

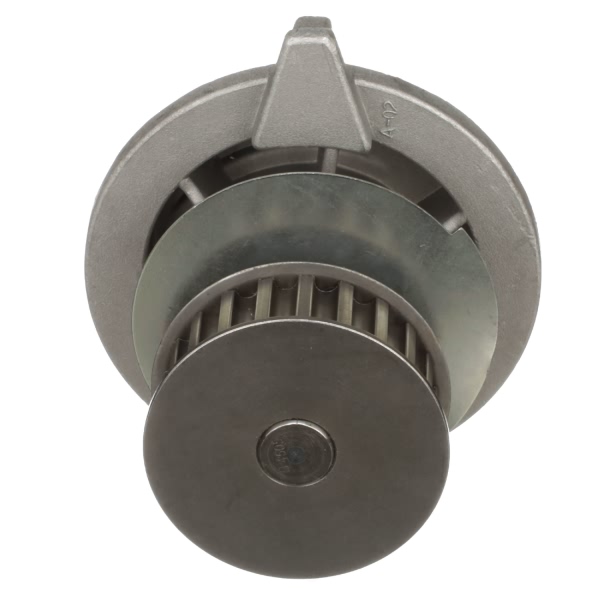

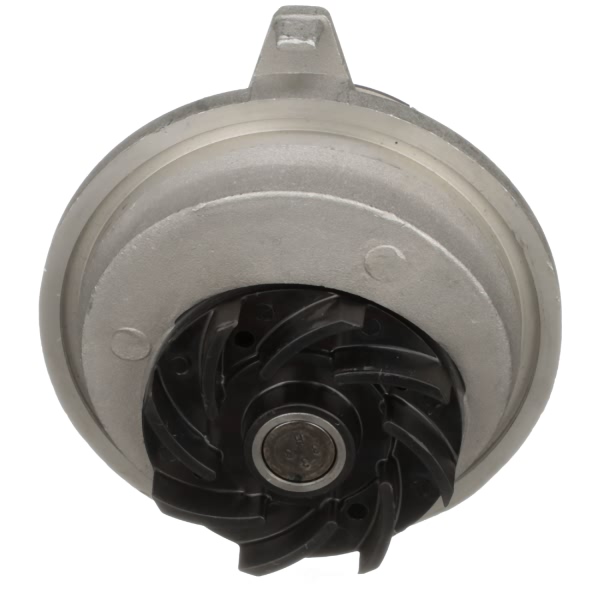

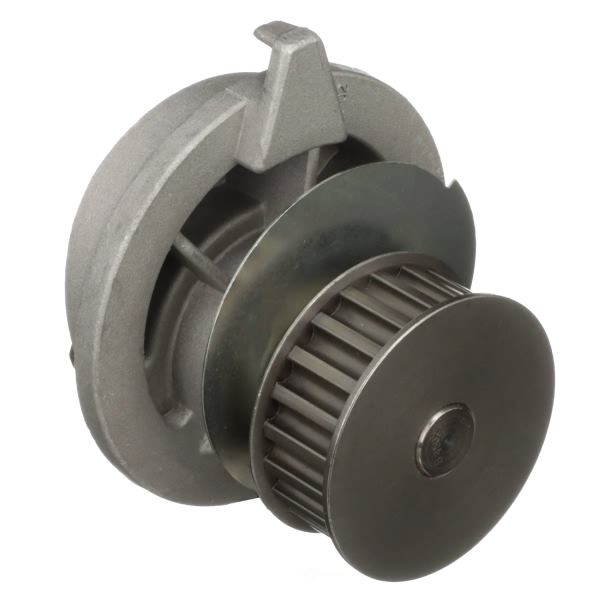

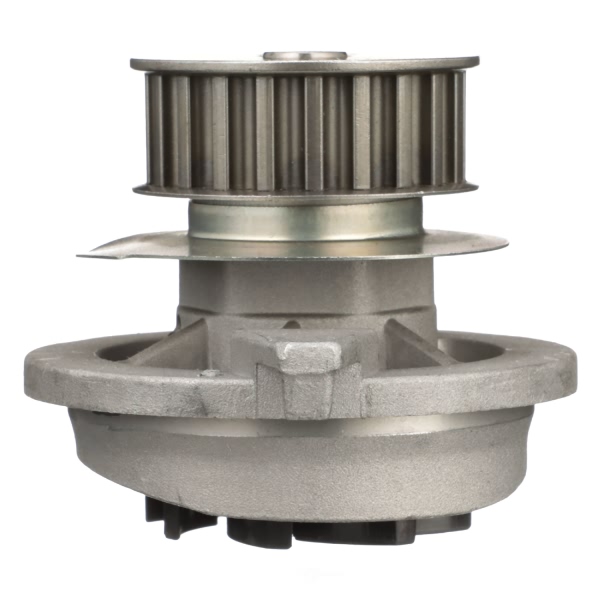

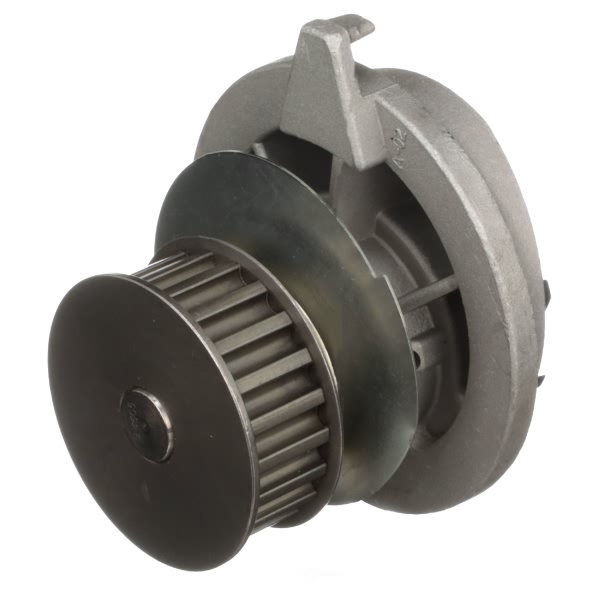

Airtex® Engine Coolant Water Pump AW5036

Airtex Engine Coolant Water Pump AW5036

Vehicle Specific

Check if it fits by entering your vehicle info
Select Your Vehicle
  • Specifications
  • Features
  • Installation
  • Warranty
  • Vehicle Fitment
  • Specifications

    BrandAirtex
    Part NumberAW5036
    Part DescriptionEngine Coolant Water Pump
    Fan Clutch IncludedNo
    Housing MaterialAluminum
    Hub Height63.50 mm
    Impeller MaterialCast Iron
    Impeller RotationStandard
    Impeller Vane Quantity8
    Includes Back HousingNo
    Pulley Outside Diameter62.48 mm
    Water Pump Drive TypeTiming Belt
    Warning: California’s Proposition 65
  • Features

    Airtex Engine Coolant Water Pump are featured as follows:
    • Completely lubricated and ground with precision-bearing assemblies.
    • Block seals for the best protection against leakage and dirt.
    • Durable housing has been designed with precision machined mounting surfaces to ensure sealing.
    • The most recent modifications to impellers allow for maximum coolant flow.
    • With the help of guided-tooling, the hub is pressed on.
    • To make sure that high quality is guaranteed, this product has undergone 100% factory test.
    The engine's health and longevity are maintained by the Airtex Engine Coolant Water Pump AW5036, which is a crucial part of your vehicle's cooling system. Airtex has installed a water pump which is made from high-quality materials to facilitate the correct cooling and prevent overheating of the engine as well. There are precision-ground and permanently lubricated unitized bearing assemblies, unitized seals for prevention of leakage and contamination while a durable housing with precisely-machined mounting surfaces provides protection. The pump's impeller design helps provide maximum coolant flow and all rpm's. The pumps are factory tested per standard quality requirements which provide you with a dependable component for your vehicle.
    Airtex is an aftermarket parts supplier for automobiles, which specializes in cooling, fuel delivery as well as electric components. Established in 1935, this company is located in Fairfield, Illinois and serves Original Equipment Manufacturers (OEMs) and the automotive aftermarket. Airtex has three factories that work under ISO standards and several design and testing centers. The corporation's products are famous for their superior quality and refinements made on after markets replacements' designs and performance.
  • Installation

  • Warranty

    Limited Lifetime
  • Vehicle Fitment

    Year Make Model Trim Engine
    1986 Buick SkyhawkAll Trims4 Cyl 1.8L
    1987-1988 Buick SkyhawkAll Trims4 Cyl 2.0L
    1987-1988 Oldsmobile FirenzaAll Trims4 Cyl 2.0L
    1987-1989 Pontiac Grand AmAll Trims4 Cyl 2.0L
    1988-1990 Pontiac OptimaAll Trims4 Cyl 2.0L
    1987-1989 Pontiac SunbirdAll Trims4 Cyl 2.0L
    1987-1989 Pontiac TempestAll Trims4 Cyl 2.0L
